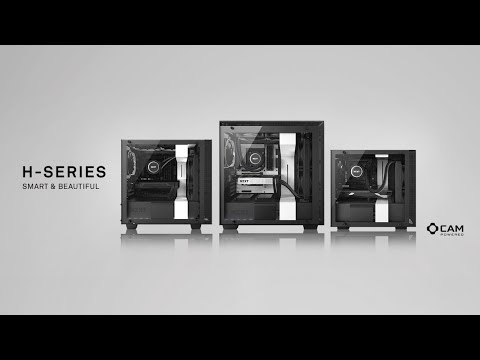

New H-Series Case Overview & Comparison – YouTube
Video will open in a new window
Using the eBay App? Paste link into a browser window:
-
CAM-powered Smart Device to simplify installation and manage use of RGB lighting and fans
-
Premium, all-steel construction with the sleek H-series design; available in four color combinations
-
Tempered glass panel showcases custom RGB lighting
-
System installation and expansion made easy with all-new cable management system
-
Water-cooling installation simplified for both AIO and custom loop
-
Adaptive Noise Reduction optimizes cooling and noise balance for best gaming comfort
The H200i showcases NZXT’s vision for modern PC building. This premium mini-ITX case features a unique CAM-powered Smart Device that digitally drives RGB lighting and fan performance. You can effortlessly control RGB lighting and fans, while Adaptive Noise Reduction optimizes your build’s acoustics through machine learning and ideal fan settings. Includes two integrated Aer F fans and a RGB LED strip to enhance the aesthetics of your build as seen through the H200i’s stunning tempered glass panel.
Specifications
| Dimensions | W: 210mm H: 334mm D: 372mm (without feet) W: 210mm H: 349mm D: 372mm (with feet) |
| Material(s) | SECC Steel and Tempered Glass |
| Weight | 6.0 kg |
| Motherboard Support | mini-ITX |
| Expansion Slots | 2 |
| I/O Ports | 2 x USB 3.1 Gen 1 1 x Audio/Mic |
| Drive Bays | 2.5”: 3+1 3.5”: 1 |
| Filters | Front and PSU Intake |
| Smart Device | 3 x Fan channels with Max 10W per channel output* 1 x RGB LED port support up to 4 x HUE+ LED strips or 5 x Aer RGB fans Built-in noise detection module *Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters. |
| LED Strips | 1 integrated LED strip No additional strips included. |
| System Requirements | PC with open internal USB 2.0 port and Windows® 10 operating system recommended. Internet connection is needed to download CAM. Some CAM features require Internet access, a valid email address and acceptance of our current Terms of Service. |
| Radiator Support | Front: 2 x 120 with Push/Pull Rear: 1 x 120 |
| Fan Support | Front: 2 x 120/2 x 140mm Top: 1 x 120mm (1 Aer F120 Case Version included) Rear: 1 x 120mm (1 Aer F120 Case Version included) |
| Fan Specs | Aer F120 (Case Version) Speed: 1200 + 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing |
| Clearance | Cable Management: 16.3mm GPU Clearance: Up to 325mm CPU Cooler: Up to 165mm Front Radiator: 85mm Rear Radiator: 42mm PSU Length: 311mm |
